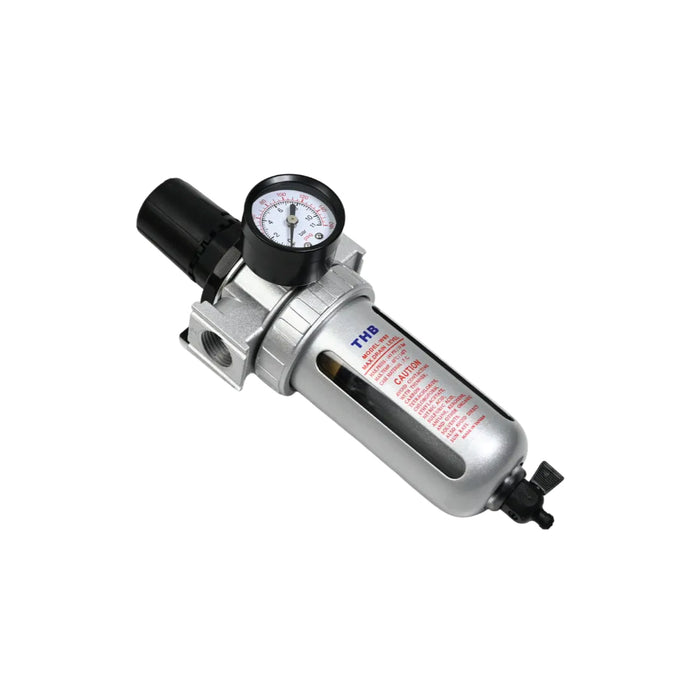

THB FR89 Air Control Unit (Single)
SKU 540THB9012
Sold out
Original price
$49.34
-
Original price
$57.50
Original price
$49.34
$49.34
-
$57.50
Current price
$49.34
Availability:
Out of stock
Availability:
Out of stock
- Steel guards offer better protection.
- Easy installation and disassembly.

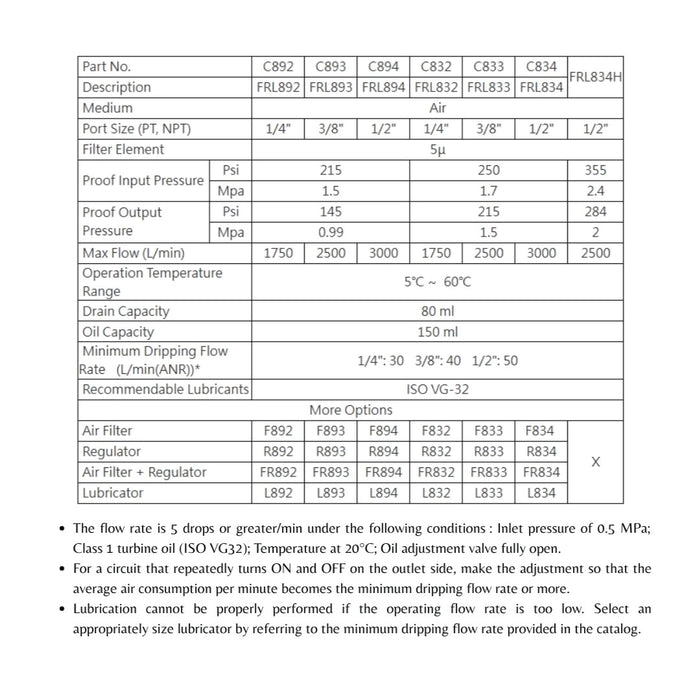

- The flow rate is 5 drops or greater/min under the following conditions : Inlet pressure of 0.5 MPa; Class 1 turbine oil (ISO VG32); Temperature at 20°C; Oil adjustment valve fully open.
- For a circuit that repeatedly turns ON and OFF on the outlet side, make the adjustment so that the average air consumption per minute becomes the minimum dripping flow rate or more.
- Lubrication cannot be properly performed if the operating flow rate is too low. Select an appropriately size lubricator by referring to the minimum dripping flow rate provided in the catalog.
