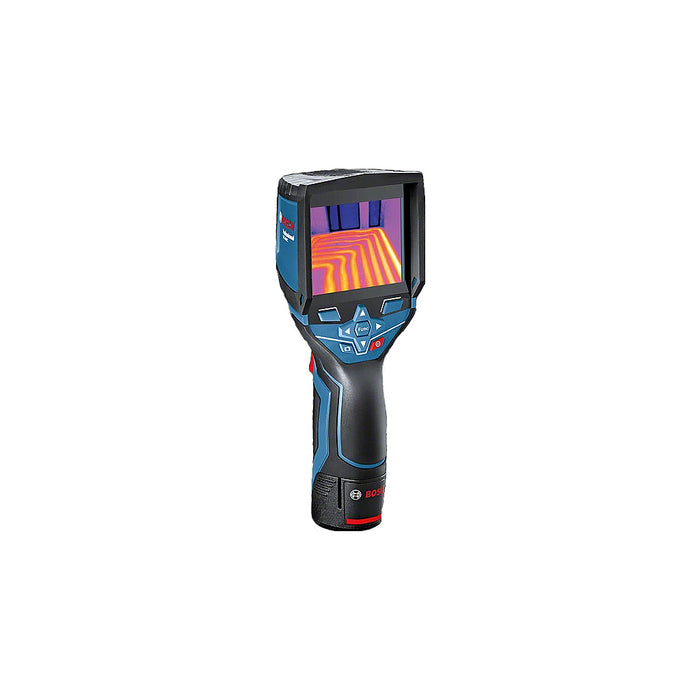

BOSCH GTC 400C Thermo Detector
SKU 184BSH35008
Sold out
Original price
$1,918.20
-
Original price
$1,918.20
Original price
$1,918.20
$1,918.20
-
$1,918.20
Current price
$1,918.20
Availability:
Out of stock
- Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app.
- Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement.
- Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- AA1 alkaline battery adapter 1 608 M00 C1B
- 4 x 1.5 V LR6 battery (AA)
- Protective Bag
- Hand strap
- Micro USB cable2 609 120 670
Technical data
| Measuring application | Thermal image |
| Measurement range | -10 °C to +400 °C |
| Measuring accuracy of IR | ± 3.0 °C* (*plus use-dependent deviation) |
| Data transfer | MicroUSB, Wi-Fi |
| Thermal sensitivity (NETD) | <50 mK |
| Size of IR sensor | 160x120 px |
| Field of view (FOV) | 53x43 ° |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Resolution | 0.1 °C |
| Number of measuring points | 19,200 |
| Power supply and runtime | 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V |
| Frame buffer (number of images) | 500 |
| Memory type | Internal memory |
| File format of image | .jpg |
| Dust and splash protection | IP 53 |
| Weight | 0.54 kg |
| Supported Android devices | Smartphone with Android 6.0 or higher |
| Supported iOS devices | iPhone with iOS 11 or higher |
| Size of display | 3,5" |
| Focus distance, minimum | 0.3 |
