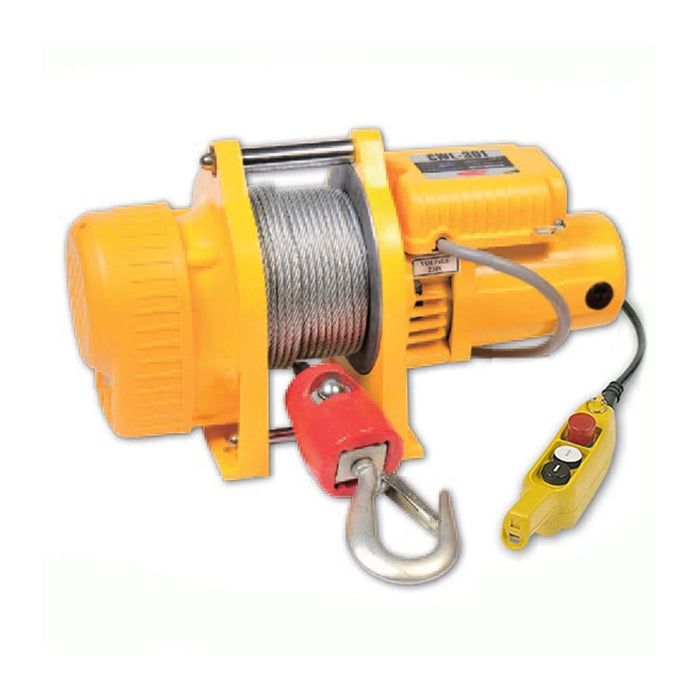

COMEUP CWL-301L Electric Winch (230V)
SKU 180COM1005
Original price
$2,055.05
-
Original price
$2,055.05
Original price
$2,055.05
$2,055.05
-
$2,055.05
Current price
$2,055.05
Availability:
Low stock
- Lightweight and compact design for easy installation.
- Double mechanical ratchets brake provide instant and safe braking.
- Operates on standard household power supply.
- Wire rope comes with a safety-latch weight hook.
- Enclosed drum flange prevents ropes becoming trapped between drum and support castings.
- Emergency stop function switch is available upon request.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- Wire rope 6 mm x 60 m
- Weight hook, CHW-0031
- Remote control, CPB-313
- Switch cord 2.0 mm2 x 6C x 10 m
- Pendant switch CPB-313 - Option Accessories:
- Remote Control, PB-417
- Switch cord 2.0 mm2 x 6C x 10 m
- Pendant switch PB-417 w/an emergency stop button
Technical data
| Lifting capacity | 300 kg at wire rope top layer |
| Lifting speed | 16 – 25 m/min |
| Motor rating IP44 | 2.3 kw x 11 A series wound |
| Gear ratio | 110:1 |
| Maximum lifting height | 58 m |
| Braking methods | |
| for motor | Electromagnetic |
| for gear | Double mechanical ratchets |
| Wire rope | 6 mm x 60 m |
| Drum length | 147 mm |
| Drum dia. | 95 mm |
| Drum flange dia. | 190 mm |
| Mounting bolts pattern | 197 mm x 94 mm ; 207 mm x 135 mm |
| Net weight, kg (standard version) | 40 kg |
| Gross weight | 42 kg |
| Body dimension, (L x D x H) | 556 x 210 x 270 mm |
| Box dimension, (L x D x H) | 630 x 395 x 350 mm |
Lifting Capacity, Lifting Speed and Rope Capacity:
| Layer of Wire rope | Lifting Capacity, kg | Lifting Speed, m/min | Total Rope on the Drum, m |
| 1st | 478 | 16 | 7.5 |
| 2nd | 427 | 17.7 | 15.8 |
| 3rd | 386 | 19.6 | 25 |
| 4th | 353 | 21.5 | 35.1 |
| 5th | 324 | 23.4 | 46.1 |
| 6th | 300 | 25 | 60 |
Note:.Above performance ratings are based on 50Hz supply.
Pulling Load Capacity for Various Inclines in kg
| Model | Level Surface | Gradient % inclines / | angle in degrees | |||
| 10% 60° | 20% 11° | 40% 22° | 60% 31° | 80% 39° | ||
| CWL-301L | 2,500 | 1,340 | 970 | 680 | 490 | 410 |
Note:.
- 1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%.
2. Use a snatch block for double line operation, to increase line pull by approximately 85%.
3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary).
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated lifting capacity shown is based on the top rope layer on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
- WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
