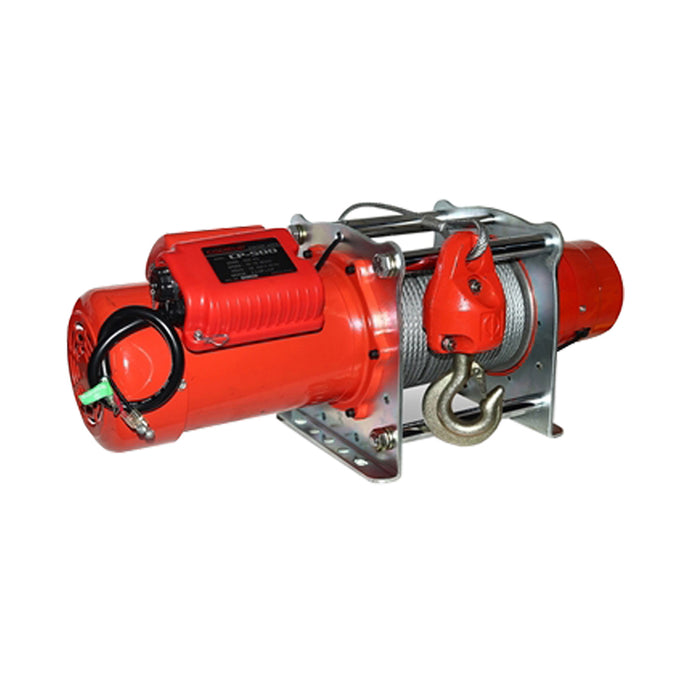

COMEUP CP-500T Electric Winch (415V)
SKU 180COM2001
Original price
$2,242.50
-
Original price
$2,242.50
Original price
$2,242.50
$2,242.50
-
$2,242.50
Current price
$2,242.50
Availability:
Low stock
- Lightweight and compact design for easy installation.
- Electromagnetic spring-applied failsafe brake.
- Heavy duty high efficiency ball bearing on all running surfaces.
- Planetary gears for maximum mechanical efficiency.
- Enclosed drum flange to prevent rope becoming trapped between drum and support steel plates.
- Steel plate foot mountings.
- Quiet running.
- Emergency stop function switch is available upon request.
- Low voltage control ass'y is available upon request.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- Wire rope 7 mm x 60 m
- Weight hook, CHW-0005
- Remote control, HOB-213
- - Switch cord 3.5 mm2 x 5C x 6 m
- - Pendant switch HOB-213
- Option Accessories
- Remote Control, PB-331
- - Switch cord 3.5 mm2 x 5C x 6 m
- - Pendant switch PB-331 w/an emergency stop button
- Low voltage control ass'y LV-320
- - Remote control, PB-306
- - * Switch cord 1.25 mm2 x 3C x 3m
- - * Pendant switch PB-306 w/an emergency stop button
- - Low voltage control, LV-320
- Low voltage control ass'y LV-320
- - Remote control, CPB-161
- - * Switch cord 1.25 mm2 x 3C x 3m
- - * Pendant switch CPB-161
- - Low voltage control, LV-320
Technical data
| Lifting capacity | 500 kg at wire rope top layer |
| Lifting speed | 12 – 18 m/min |
| Power source | 3 phase, 380-440V |
| Motor rating IP44 | 1.8 kw x 4 poles induction brake motor |
| Gear ratio | 42:1 |
| Maximum lifting height | 58 m |
| Braking methods | Electromagnetic |
| Wire rope | 7 mm x 60 m |
| Drum length | 220 mm |
| Drum dia. | 102 mm |
| Drum flange dia. | 180 mm |
| Mounting bolts pattern | 267 mm x 156 mm ; 267 mm x 72 mm |
| Net weight, kg (standard version) | 54 kg |
| Gross weight | 62 kg |
| Body dimension, (L x D x H) | 704 x 260 x 299 mm |
| Box dimension, (L x D x H) | 750 x 300 x 380 mm |
Lifting Capacity, Lifting Speed and Rope Capacity:
| Layer of Wire rope | Lifting Capacity, kg | Lifting Speed, m/min | Total Rope on the Drum, m |
| 1st | 757 | 12 | 10 |
| 2nd | 671 | 13.4 | 22 |
| 3rd | 602 | 14.9 | 35 |
| 4th | 546 | 16.4 | 50 |
| 5th | 500 | 18 | 60 |
Note:.Above performance ratings are based on 50Hz supply.
Pulling Load Capacity for Various Inclines in kg
| Model | Level Surface | Gradient % inclines / | angle in degrees | |||
| 10% 60° | 20% 11° | 40% 22° | 60% 31° | 80% 39° | ||
| CP-500T | 4,170 | 2,230 | 1,620 | 1,040 | 810 | 690 |
Note:.
- 1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%.
- 2. Use a snatch block for double line operation, to increase line pull by approximately 85%.
- 3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary).
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated lifting capacity shown is based on the top rope layer on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
- WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
