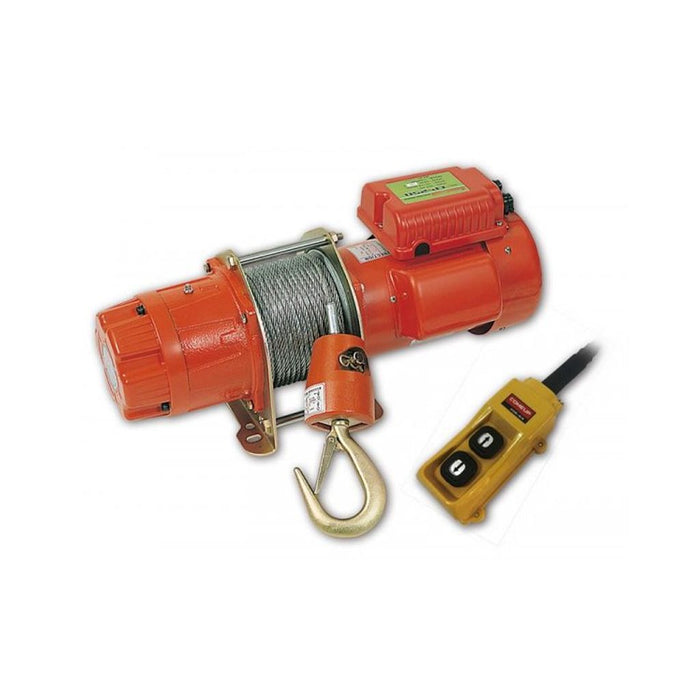

COMEUP CP-250 Electric Winch (230V)
SKU 180COM1002
Sold out
Original price
$1,380.00
-
Original price
$1,380.00
Original price
$1,380.00
$1,380.00
-
$1,380.00
Current price
$1,380.00
Availability:
Out of stock
- Positive retention of wire rope on to drum.
- Electromagnetic spring-applied failsafe brake.
- Heavy duty high efficiency ball bearing on all running surfaces.
- Planetary gears for maximum mechanical efficiency.
- Enclosed drum flanges to prevent rope becoming trapped between drum and support steel plates.
- Quiet running.
- Emergency stop function switch is available upon request.
- Low voltage control ass’y is available upon request.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- Wire rope 6 mm x 30 m
- Weight hook, CHW-0031
- Power lead 1.5mm2 x 3C x 3 mm and industry plug
- Remote control, HOB-213
- - Switch cord 1.25 mm2 x 5C x 3m
- - Pendant switch HOB-213
- Option Accessories
- Remote Control, PB-331
- - Switch cord 1.25 mm2 x 5C x 3m
- - Pendant switch PB-331 w/an emergency stop button
- Low voltage control ass'y LV-320
- - Remote control, PB-306
- * Switch cord 1.25 mm2 x 3C x 3m
- * Pendant switch PB-306 w/an emergency stop button
- - Low voltage control, LV-320
Technical data
| Lifting capacity | 250 kg at wire rope top layer |
| Lifting speed | 10 – 15 m/min |
| Power source | 1 phase, 110V or 220-240V |
| Motor rating IP44 | 0.75 kw x 4 poles induction brake motor |
| Gear ratio | 43:1 |
| Maximum lifting height | 29 m |
| Braking methods | Electromagnetic |
| Wire rope | 6 mm x 30 m |
| Drum length | 110 mm |
| Drum dia. | 94 mm |
| Drum flange dia. | 154 mm |
| Mounting bolts pattern | 142 mm x 142 mm 142 mm x 94 mm |
| Net weight, kg (standard version) | 34 kg |
| Gross weight | 36.5 kg |
| Body dimension, (L x D x H) | 548 x 210 x 241 mm |
| Box dimension, (L x D x H) | 630 x 285 x 285 mm |
Lifting Capacity, Lifting Speed and Rope Capacity:
| Layer of Wire rope | Lifting Capacity, kg | Lifting Speed, m/min | Total Rope on the Drum, m |
| 1st | 370 | 10 | 5.4 |
| 2nd | 330 | 11.3 | 11.5 |
| 3rd | 298 | 12.5 | 18.3 |
| 4th | 272 | 13.8 | 25.7 |
| 5th | 250 | 15 | 30 |
Note:.Above performance ratings are based on 50Hz supply.
Pulling Load Capacity for Various Inclines in kg
| Model | Level Surface | Gradient % inclines / | angle in degrees | |||
| 10% 60° | 20% 11° | 40% 22° | 60% 31° | 80% 39° | ||
| CP-250 | 2,080 | 1,120 | 810 | 520 | 400 | 350 |
Note:.
- 1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%.
- 2. Use a snatch block for double line operation, to increase line pull by approximately 85%.
- 3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary).
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated lifting capacity shown is based on the top rope layer on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
- WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
