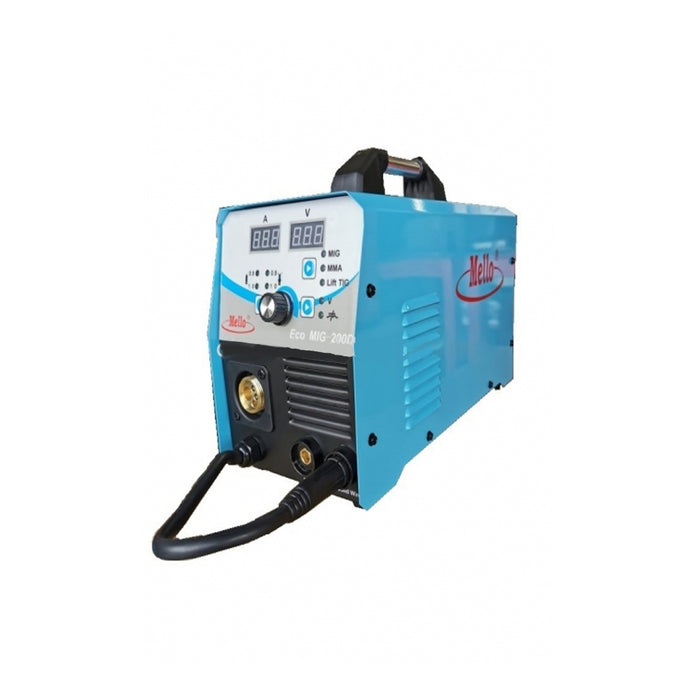

MELLO ECO MIG-200D Welding Machine (160A)
SKU 482MEL1007
Original price
$483.00
-
Original price
$483.00
Original price
$483.00
$483.00
-
$483.00
Current price
$483.00
Availability:
in stock, ready to be shipped
- Advanced control module IGBT technology, improves the performance of the welding machine.
- Automatic compensation for voltage fluctuation, can work normally against input voltage fluctuation.
- Small splashing, great penetration, easy and simple to operate and aesthetic appearance of weld seam.
- Over-voltage protection, under voltage protection, over current protection, over load protection.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- 1 x MELLO ECO MIG-200D Welding Machine (160A)
- MB15 Torch 3M
- CO2 Regulator,
- Earth Clamp with Cable
- Hose
- Hose Clips 2pcs
Technical data
| Brand | MELLO |
| Model | MIG-200D |
| Input Power Voltage | 240 V |
| Rated Input Capacity(KVA) | 7.5 |
| No-Load Voltage | 64 V |
| Output Current Range (A) | 30-160 |
| Duty Cycle (25°C) | 60 % |
| Efficiency | 85 % |
| Feeding Speed (M/Min) | 2-15 |
| Protection Class | IP21S |
| Type of Wire Feeder | Inside |
| Electrode Diameter | 1.6-3.2 mm |
| Diameter of Spool | 200 mm |
| Insulation Class | F |
| Diameter of Wire | 0.8/1.0 mm |
| Net Weight (Kg) | 7 Kg |
| Dimension (L x W x H) (mm) | 425 x 310 x 183 |
