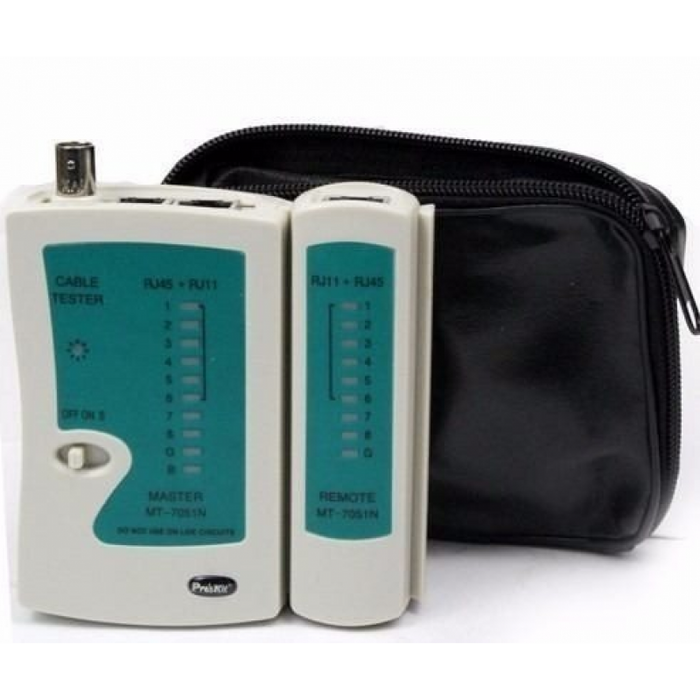

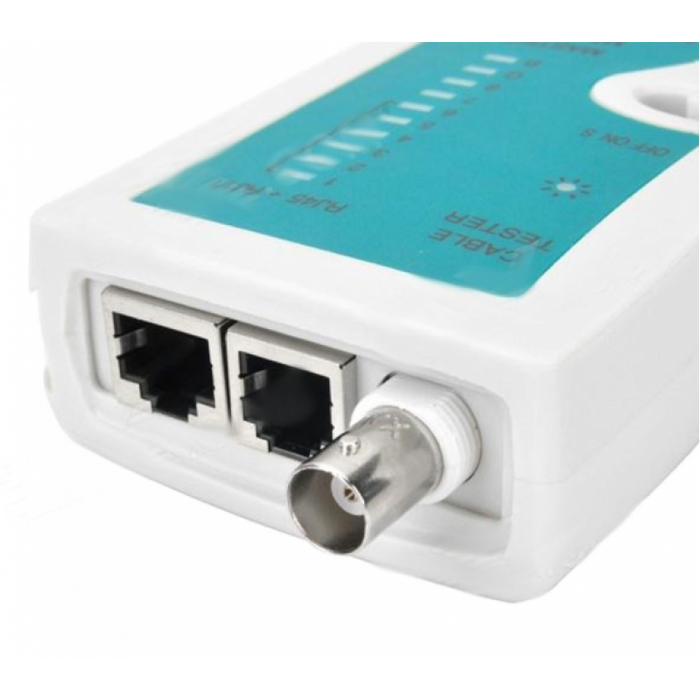

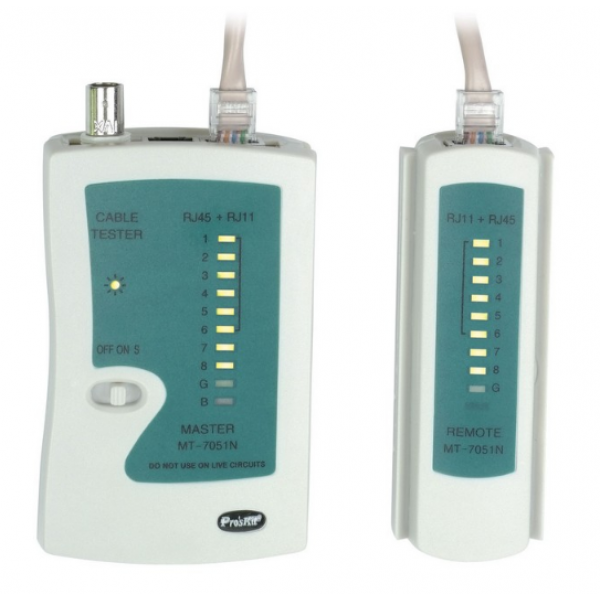

PROSKIT MT-7051N Multi-Modular Cable Tester
SKU 400PKT7051N
Original price
$32.89
-
Original price
$32.89
Original price
$32.89
$32.89
-
$32.89
Current price
$32.89
Availability:
Low stock
- Tests RJ45 TIA568A/B (AT&T 258A), 10 Base-T, Token ring, RJ-11/ RJ-12 USOC and Coaxial BNC cable.
- Automatically check cable for continuity, short, open and crossed wire pairs.
- Coaxial cable port indentifies cable conditions including shorts, shield opens and center conductor breaks.
- Main unit and remote allow one person testing.
- Cable not include
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- BNC connector ×1
- Zipper bag ×1
- Individual packing: Blister card
Technical data
| Power source | DC 9V Battery (Battery not included) |
| Compatible connectors | RJ45 (8 pin), RJ11 (6 pin), BNC |
| Cable types tested | UTP, STP, Cat. 5e, Cat. 6, Cat. 7, RG6, RG58, RG59, CATV/CCTV |
| Test mode | 3 modes |
| Cable mapping | 8 LEDs |
| Shielded indication | Yes |
| Battery | NEDA 1604 / 6F22 DC9V ×1 pce |
| Size | 105 X 65 X 28 MM |
| MT-7051N Remote unit | |
| Compatible connectors | RJ45 (8 pin), RJ11 (6 pin), BNC |
| Cable types tested | UTP, STP, Cat. 5e, Cat. 6, Cat. 7 |
| Cable mapping | 8 LEDs |
| Size | 105 X 38 X 28 MM |
