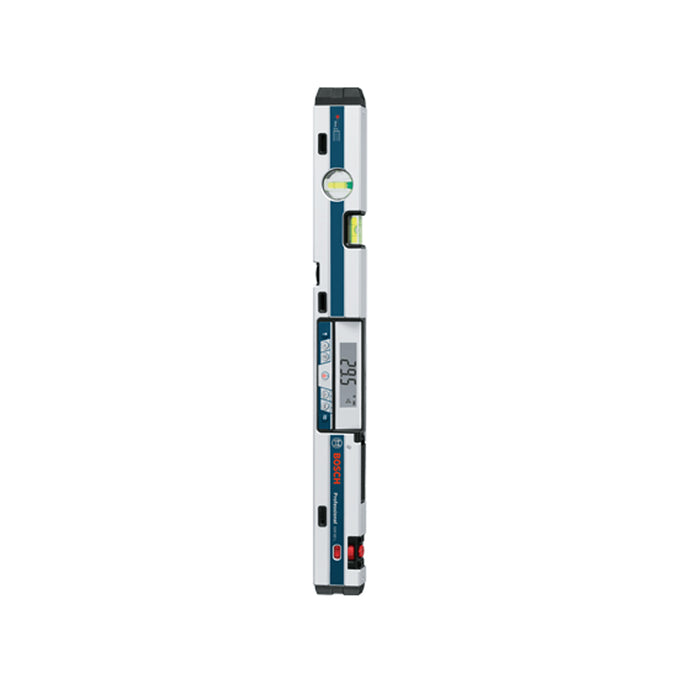

BOSCH GIM 60L Inclinometer (60CM)
SKU 184BSH0601076900
Sold out
Original price
$391.00
-
Original price
$391.00
Original price
$391.00
$391.00
-
$391.00
Current price
$391.00
Availability:
Out of stock
- Integrated point laser for incline measurement up to a distance of 30 m.
- Strong magnets and two straps for securely fastening the instrument to workpieces.
- Incline mechanism for fine adjustment on uneven surfaces.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- Protective Bag
- 4 x 1.5 V LR6 battery (AA)
Technical data
| Length | 60 cm |
| Measurement range | 0° – 360° (4 x 90°) |
| Electronics measurement accuracy 0°/90° | ± 0.05° |
| Electronics measuring accuracy at 1– 89° | ± 0.1° |
| Working range (laser) | 30 m |
| Power supply, inclination measurement | 1 x 9 V-6LR61 + 2 x 1.5 V LR03 |
| Weight approx. | 0.91 kg |
| Laser type | 650 nm, < 1 mW |
| Laser range | 30 m |
| Laser class | 2 |
| Levelling accuracy of laser | ± 0.5 mm/m |
| Units of measurement | °, %, mm/m |
| Tripod thread | 1/4" |
