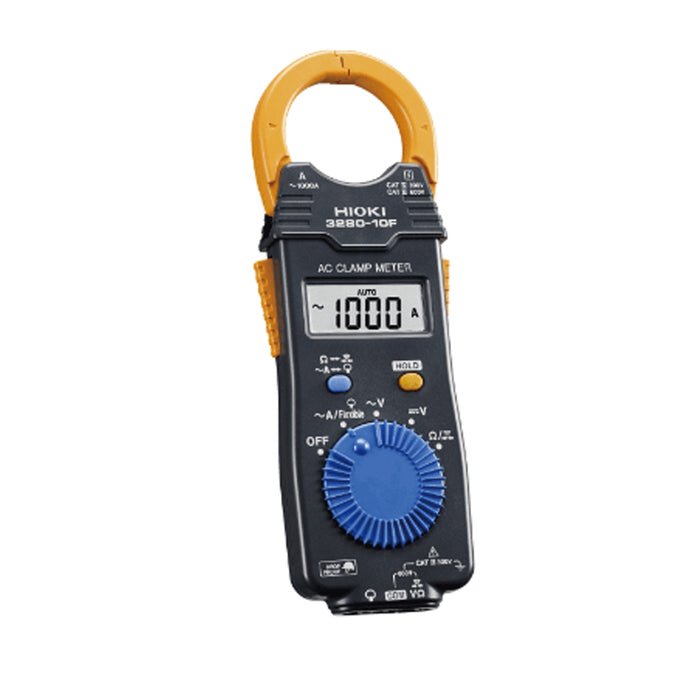

HIOKI 3280-10F Clamp Meter
SKU 400HIO328010F
Original price
$147.89
-
Original price
$147.89
Original price
$147.89
$147.89
-
$147.89
Current price
$147.89
Availability:
Low stock
- Able to withstand being dropped onto concrete from a height of 1 m.
- Expands that instrument’s operating temperature range to -25°C to 65°C.
- 3280-10F can be used to measure the current flowing in pairs of wires or in tangled or complexly routed wires around which it was not possible to apply a clamp-on sensor in the past.
- The 3280-10F delivers all the functionality of a clamp meter and card tester in the form factor of the latter.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
What's included in the package
- 1 x HIOKI 3280-10F Clamp Meter
- 1 x Carrying Case 9398
- 1 x Test Lead L9208
- 1 x Coin type lithium battery (CR2032)
- 1 x Instruction manual
Technical data
| AC Current range | 41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
| AC Voltage range | 4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: ±1.8 % rdg. ±7 dgt. |
| Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
| Other functions | Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Display | LCD, max. 4199 dgt., Display refresh rate: 400 ms |
| Environmental protection | IP40 dustproof and waterproof (while in storage) |
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
| Core jaw dia. | φ 33 mm (1.30 in) |
| Dimensions and mass | 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
