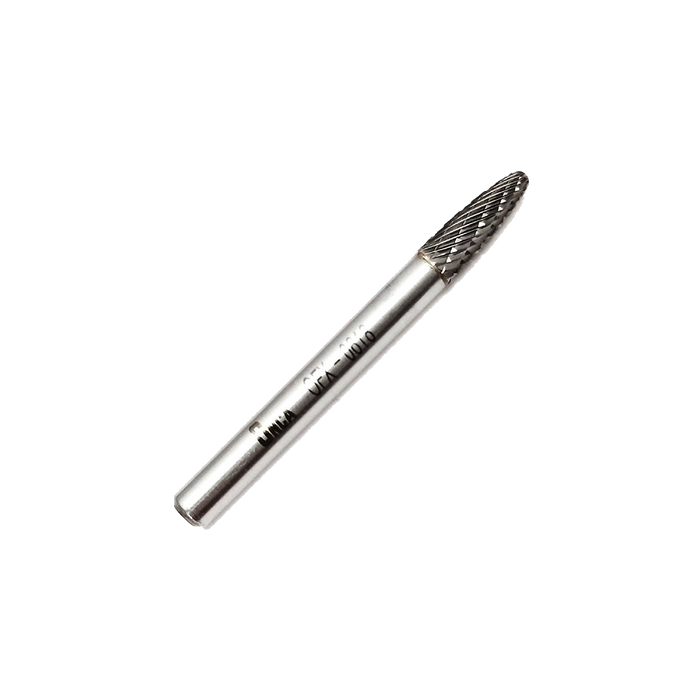

ONCA OFX Tungsten Carbide Rotary Burr Arch Ball Nose (Tree Shape)
SKU 392ONC9053
Original price
$7.67
-
Original price
$47.85
Original price
$7.67
$7.67
-
$47.85
Current price
$7.67
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
- These are round nose or ball nose, tree shaped tungsten carbide cutting burrs.
- They have a double cut with a 16mm cutting length and are to be used for rounding off edges and making concave cuts.
- Use the pointed end for cutting in hard to reach areas and acute angled contours.
- For use on many hard substances such as metals, stone, ceramic, porcelain, reinforced plastics and hard wood. Use with your rotary tool or die grinder.
Standard Shipping
All orders are processed within 2-4 business days.
Specifications
| Type F | ||||
| Double Cut | d | D | L1 | L2 |
| Model | Shank Dia (mm) | Burr Dia (mm) | Burr Length (mm) | Overall Length (mm) |
| OFX-0610 | 6.0 | 16 | 16 | 61 |
| OFX-0813 | 6.0 | 20 | 20 | 65 |
| OFX-1016 | 6.0 | 20 | 20 | 65 |
| OFX-1220 | 6.0 | 25 | 25 | 70 |
| OFX-1625 | 6.0 | 25 | 25 | 70 |
| OFX-1925 | 6.0 | 25 | 25 | 70 |
